I just want to double check if this is still the case? since main page still shows the cap of FPS much lower.
1 Like

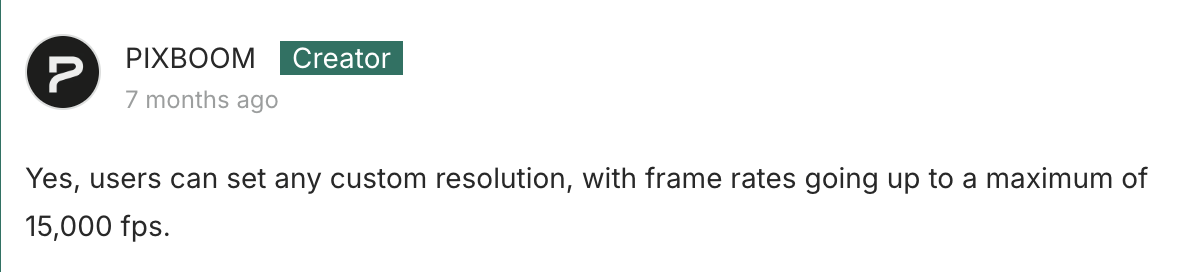

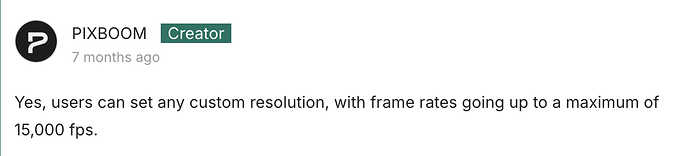

Main page still shows up to 15000fps. The graphics/charts for frame rates they do show are for more widely used 4K and 2K ratios, so you’ll have to create a custom lower resolution setting to achieve the 15000fps.
3 Likes
The maximum framerate is limited by the vertical resolution. Each horizontal line is always read in full, so horizontal resolution only affects storage space.
15,000fps is still possible - albeit at a severely limited vertical resolution. I plan to put together a comprehensive interactive chart to derive maxFPS from Y-res soon, but I can share some insights in the meantime:
The sensor reads in blocks of 32px tall, so the minimum vertical resolution is 32px at which you can get up to 20,920fps. Next up is 64px, for a 15,873fps rate. While the horizontal res can still be up to 4608px, the vertical res limitation means those extreme rates are only for experiments and/or scientific purposes, but it’s nice that they are available.
-A
2 Likes
Yea for me these higher framerates are extremely useful as I do a lot of experiments.
I would not mind to have less colors for more FPS.

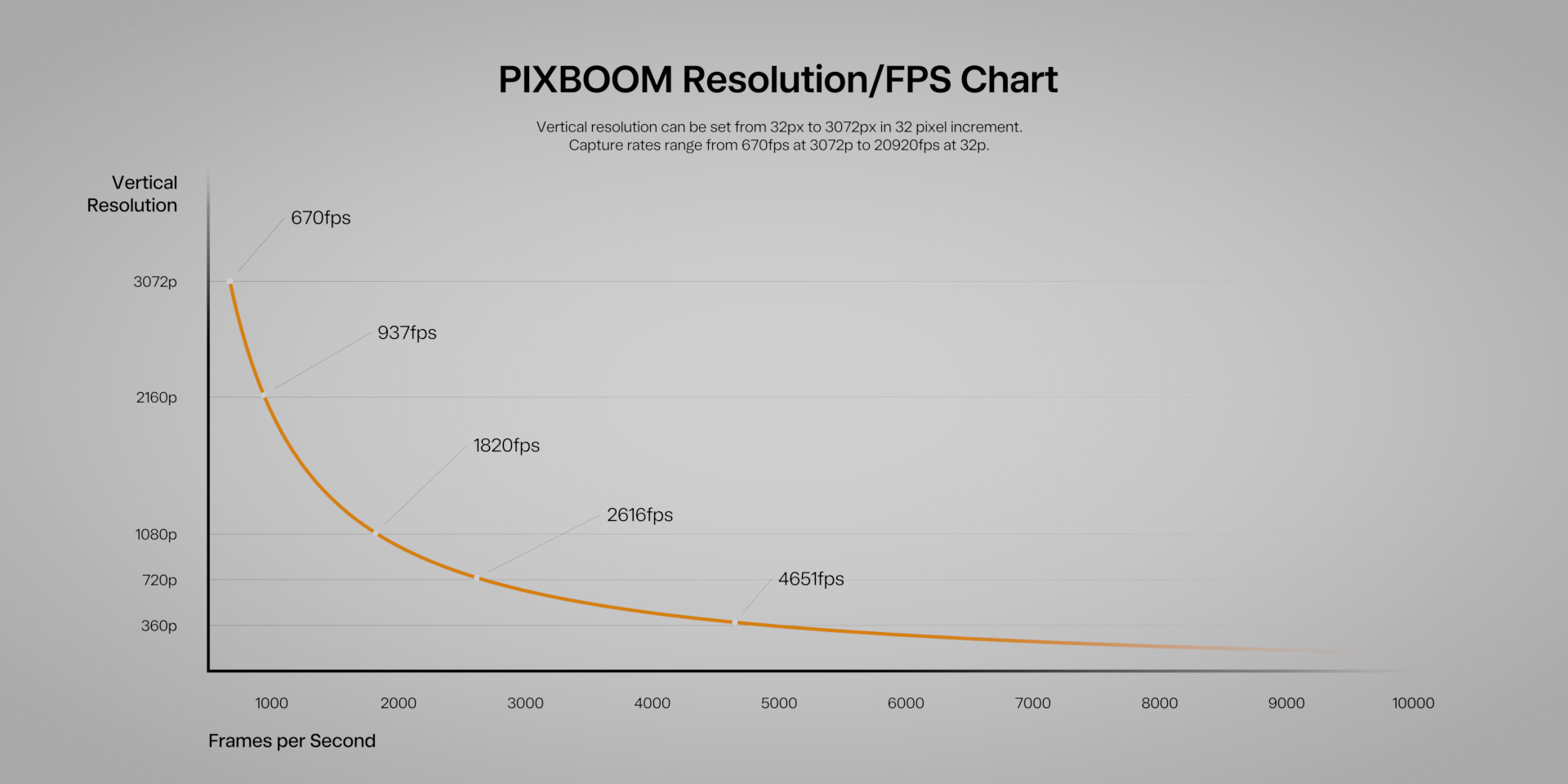

Here’s a quickly drafted chart to illustrate the relation between vertical resolution and max FPS for the 10bit mode:
20920fps is the absolute maximum achievable rate with the camera, at 32px tall in 10bit color mode.
-A
Thank you, you mentioned that this is in 10bit mode.
Would there be any possibility to have 8bit mode with higher FPS or more resolution?
Just FYI, the minimum resolution settings I can put in are 256x32. If I select max frame rate, I get 20920 FPS.
4 Likes
20,000! Wow. Sure, it’s low res, but still… 20,000!
Cheers,
Just curious, what is the resolution at 10k fps? or around 128vertical pixels? :]
Hopefully you are enjoying your camera?
So it appears vertical resolution determines max frame rate. I tested 256x128 and 512x128 and got 10706 FPS. And when I changed it to 4608x128 (so full sensor width), I could still hit that same 10706 FPS.
I tried several resolutions of ____x129, ____x130, ____x131 and all of those entries would automatically switch to ____x132 once I hit the “set” button, so there do seem to be some limitations on potential resolutions. At ____x132 max frame rates are 9208.
1 Like
Cheers man,
Yea these sensors typically are limited at how many horizontal lines they can read out.
Even phantom cameras do the same.
But it’s nice to know I might be able to use it in some cases up to 10k fps
3 Likes
Here is the presets I loaded into my camera and the resulting FPS for typical days
3840x2160 4k - 937 FPS
1920x1080 FHD - 1,820 FPS
1280 x 720 HD - 2,616 FPS
856 x 480 SD - 3,837 FPS
640 x 360 - 4,651 FPS
320 x 144 - 9,208 FPS
256 x 32 - 15,873 FPS
